rgeomorphon

A fast and low-dependency implementation of the ‘geomorphon’ terrain form classification algorithm of Jasiewicz and Stepinski (2013) based largely on the ‘GRASS GIS’ ‘r.geomorphon’ module.

This implementation employs a novel parallel algorithm, written in C++ and without external dependencies.

For the sake of simplicity, some GRASS-specific implementation details have not been added. See ?geomorphons for details.

Installation

You can install the development version of {rgeomorphon} like so:

# install.packages("remotes")
remotes::install_github("brownag/rgeomorphon")

Example

This is a basic example using the classic R volcano dataset and {terra} SpatRaster object as input.

volcano is a 10m by 10m grid of elevation values from Maunga Whau in the Auckland volcanic field of New Zealand.

library(terra)
#> terra 1.8.54
library(rgeomorphon)

# PARAMETERS
SEARCH = 7       # outer search radius (cells)
SKIP = 0         # inner skip radius (cells)
FLAT = 1         # flat angle threshold (degrees)

# classic volcano elevation data
data("volcano", package = "datasets")

# construct and georeference a SpatRaster object
dem <- terra::rast(volcano)
terra::crs(dem) <- terra::crs("EPSG:2193")
terra::ext(dem) <- c(1756968, 1757578, 5917000, 5917870)
names(dem) <- "Elevation (meters)"

# calculate geomorphons "forms"
system.time({
    rg <- geomorphons(
        dem,
        search = SEARCH,
        skip = SKIP,
        flat = FLAT
    )
})
#>    user  system elapsed
#>   0.042   0.009   0.036

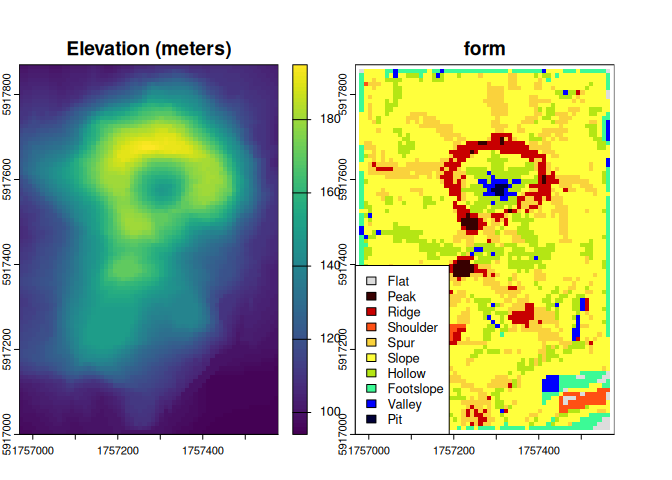

# inspect result
plot(c(dem, rg),
     plg = list(x = "bottomleft",
                bty = "o",
                bg = "white"))

Citation

citation("rgeomorphon")
#> To cite package 'rgeomorphon' in publications use:
#>
#>   Brown A (2025). _rgeomorphon: A Lightweight Implementation of the
#>   'Geomorphon' Algorithm_. R package version 0.1.0,
#>   <https://github.com/brownag/rgeomorphon/>.
#>
#>   Jasiewicz J, Stepinski T (2013). "Geomorphons - a pattern recognition
#>   approach to classification and mapping of landforms."
#>   _Geomorphology_, *182*, 147-156. doi:10.1016/j.geomorph.2012.11.005
#>   <https://doi.org/10.1016/j.geomorph.2012.11.005>.
#>
#>   Jasiewicz J, Stepinski T, GRASS Development Team (2024). _Geographic
#>   Resources Analysis Support System (GRASS) Software, Version 8.3_.
#>   Open Source Geospatial Foundation, USA. r.geomorphon module,
#>   <https://grass.osgeo.org/grass-stable/manuals/r.geomorphon.html>.
#>
#> To see these entries in BibTeX format, use 'print(<citation>,
#> bibtex=TRUE)', 'toBibtex(.)', or set
#> 'options(citation.bibtex.max=999)'.
